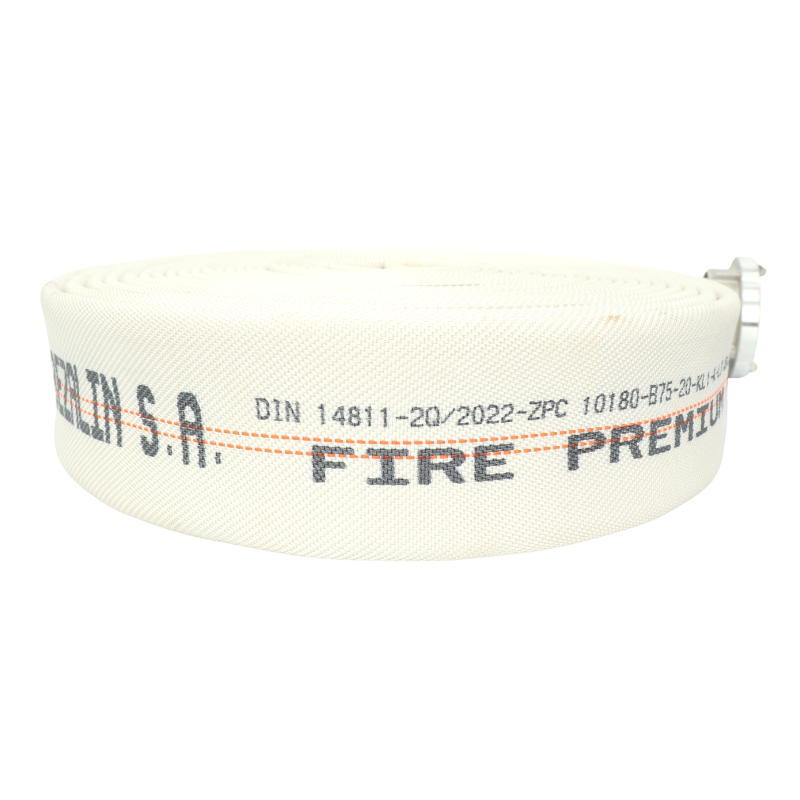

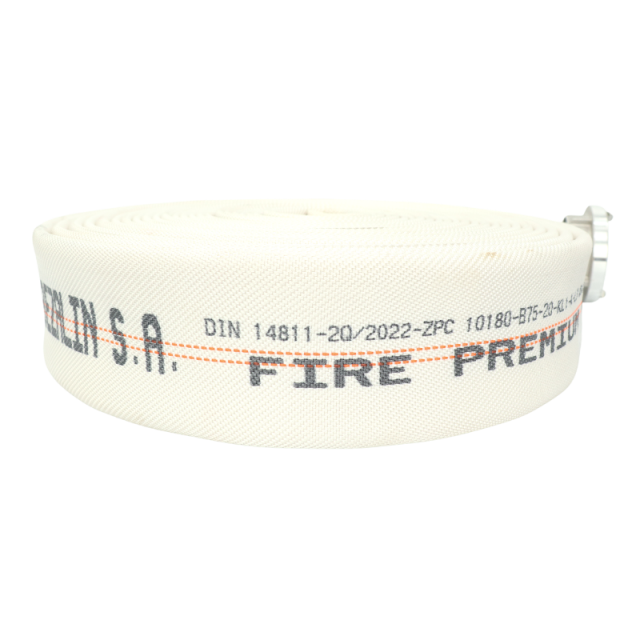

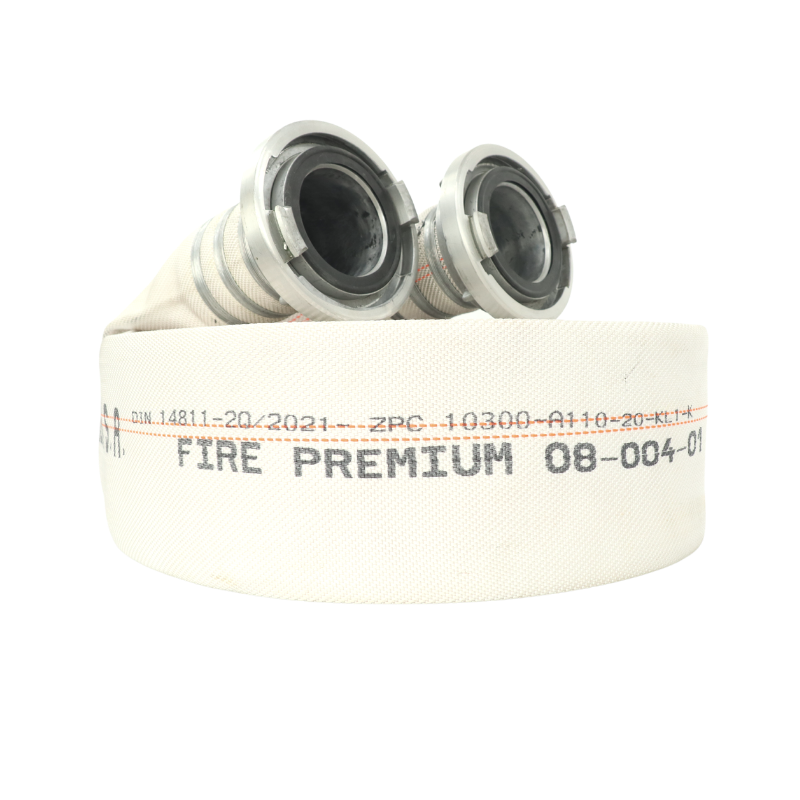

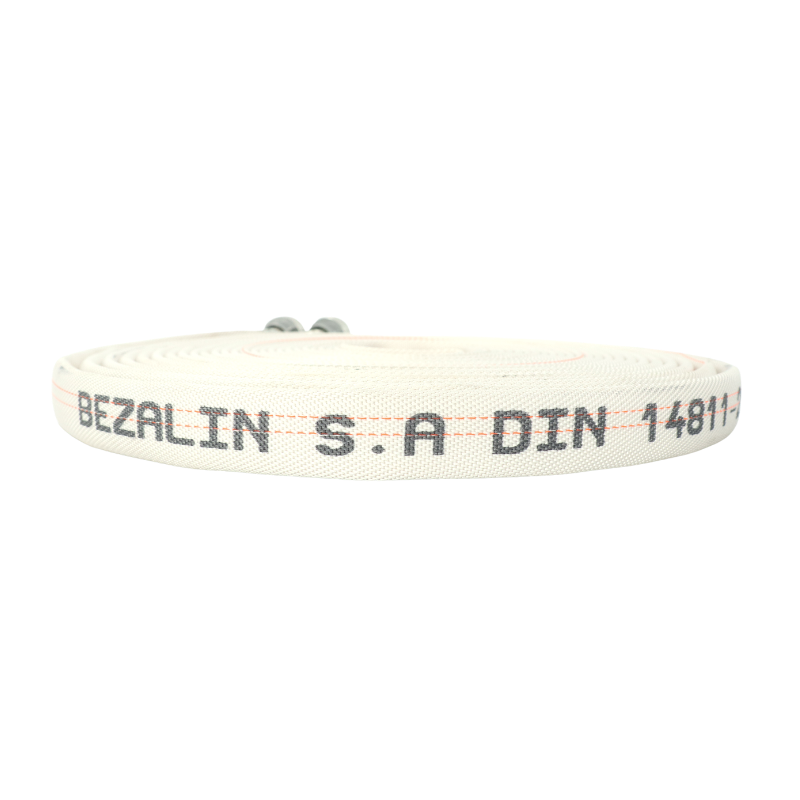

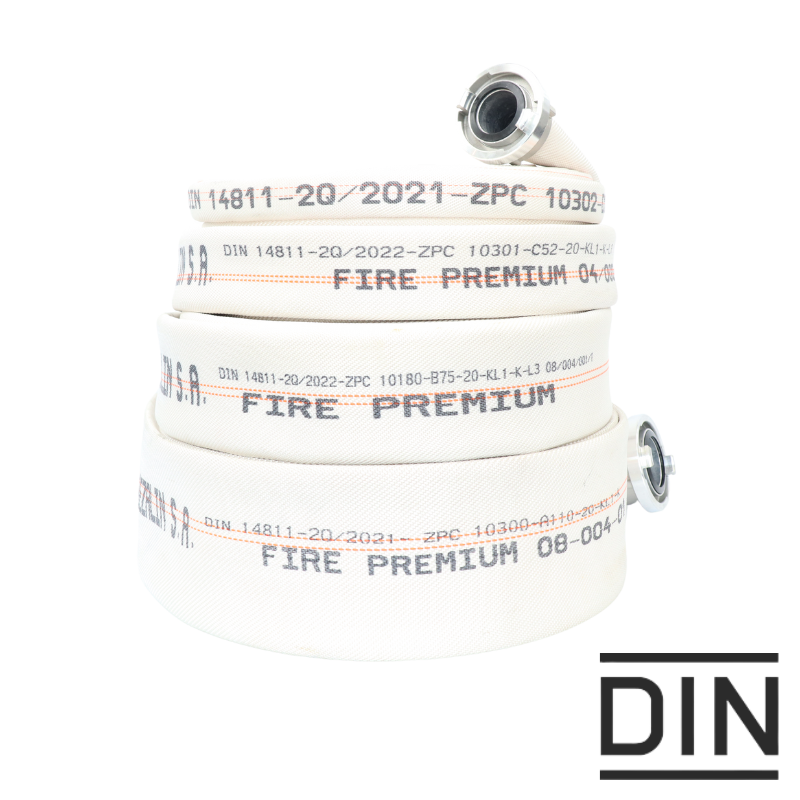

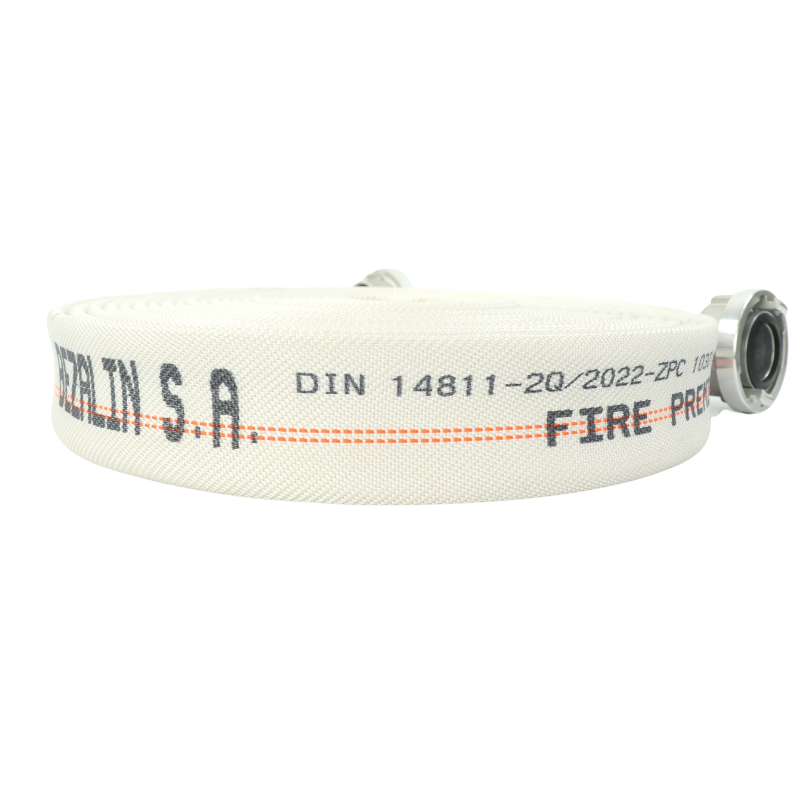

White delivery fire hoses for use in fire engines and motor pumps. Made of high quality polyester yarn and therefore solid & weather proof. Inner lining
made of the top quality black synthetic rubber (EPDM) produced by Dunlop. Hoses are equipped with light alloy STORZ suction couplings. The use of the top quality raw materials is a guarantee of product reliability and the highest possible usability.
Conform to DIN 14811.
ask about the products
Technical specification |
Delivery fire hoses fire PREMIUM conform to DIN 14811 |
||||||
W 25-20-ŁA/G/DIN |
W 52-20-ŁA/G/DIN |
W 75-20-ŁA/G/DIN |
W 110-20-ŁA/G/DIN |
||||
Internal diameter [mm] |
25 -0,5/+1,0 |
52 -0,5/+1,0 |
75 -0,5/+1,0 |
110 -0,5/+20 |
|||
Length [m] |
15 | 20* |
15 | 20* |
20* |
20* |
|||
Max work pressure [MPa] |
1,6 |
1,2 |
|||||
Max burst pressure [MPa] |
6,0 |
3,5 |
|||||
Hose braid |
round woven made of quality polyester yarn |
||||||
Weight of hose with light alloy STORZ couplings [kg] |
2,61 (15 m) |
5,71 (15 m) |
11,54 (20 m) |
19,05 (20 m) |
|||
Inner lining |
EPDM synthetic rubber |
||||||
Hose class |
Class 1 |
||||||
Approval no |
ZPC 10302 |
ZPC 10301 |
ZPC 10180 |
ZPC 10300 |
* different lengths of the hose and selling hose tape only are possible on request
